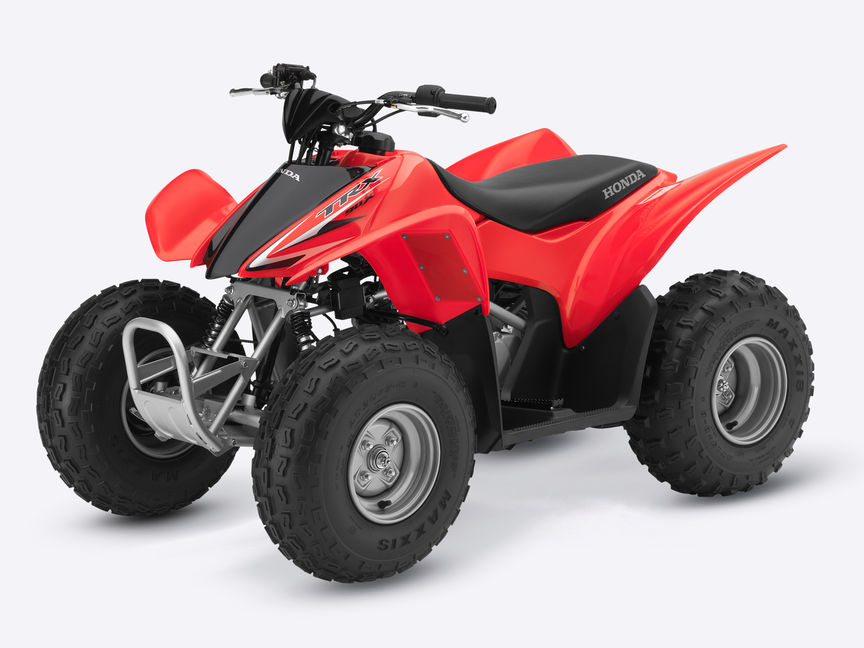

Softcover – 256 pages – Honda Fourtrax 90 1993 – 2000 Clymer Owners Service Repair Manual covers Honda Fourtrax 90 ATVs 1993 through 2000Contents: QUICK REFERENCE DATA GENERAL INFORMATIONManual organization / Performing the procedures / Notes cautions and warnings / Shop safety / Serial numbers / Parts replacement / Service tips / Lubricants / Sealants and cleaners / Torque specifications / Fasteners / Basic hand tools / Precision measuring tools / Special tools / Mechanics techniques / Riding safety / Specifications TROUBLESHOOTINGOperating requirements / Starting the engine / Engine spark test / Engine performance / Engine noise / Engine leakdown test / Handling / Electrical testing LUBRICATION MAINTENANCE AND TUNE-UPPre-ride checklist / Service intervals schedule / Fuel and lubricants / Periodic lubrication / Engine oil and filter change / Engine oil screen / Control cables / Drive chain cleaning lubrication adjustment / Periodic maintenance / Engine tune-up / Valve clearance / Timing / Compression test check / Spark plug / Storage / Specifications ENGINE TOP ENDCleanliness / Cylinder head / Camshaft and rocker arm assemblies / Valves and components / Cylinder / Piston and rings / Specifications ENGINE LOWER ENDRemoval installation / Servicing engine out of frame / Recoil starter / Drive sprocket / Oil pump / Crankcase / Crankshaft / Engine break-in / Specifications CLUTCH AND GEARSHIFT LINKAGERight crankcase cover / Clutches / Gearshift linkage / Specifications TRANSMISSION AND INTERNAL SHIFT MECHANISMMainshaft / Countershaft / Inspection / Shift drum / Specifications FUEL AND EXHAUST SYSTEMSAir cleaner / Carburetor and intake manifold / Carburetor adjustments / Throttle control and cable / Fuel tank / Exhaust pipe and muffler / Specifications ELECTRICAL SYSTEMSAlternator / Alternator and switch testing / Ignition coil and leads / Ignition timing / Ignition switch / Engine stop switch / Specifications FRONT SUSPENSION AND STEERINGFront wheel / Steering knuckle / Control arm / Kingpin bushings / Shock absorbers / Tie rods / Steering shaft / Handlebar / Tyres and wheels / Specifications REAR SUSPENSIONRear wheel / Shock absorber / Driven sprocket / Rear axle / Rear axle bearing holder / Swing arm / Drive chain / Specifications BRAKESFront brakes / Rear brakes / Brake inspection / Seals and bearings / Rear brake pedal / Brake pedal cable / Parking brake c click here…..
